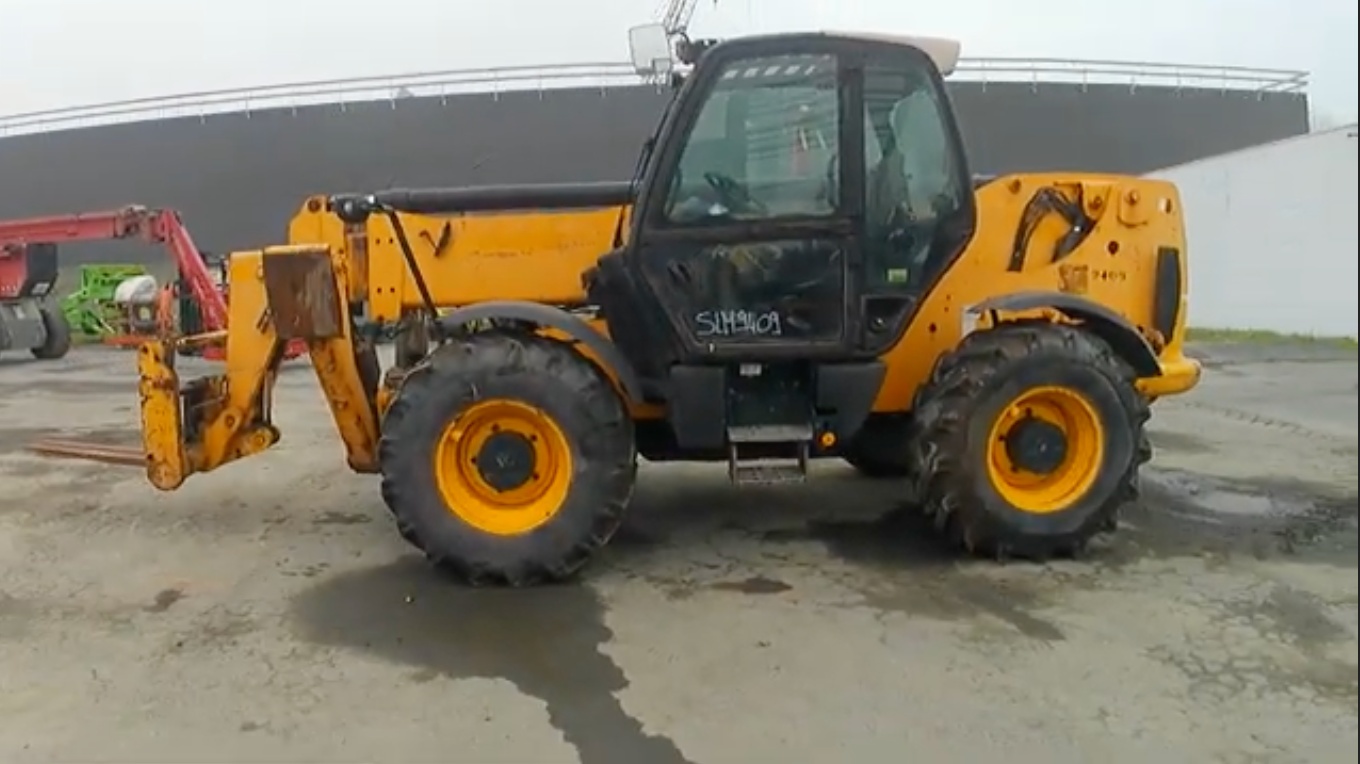

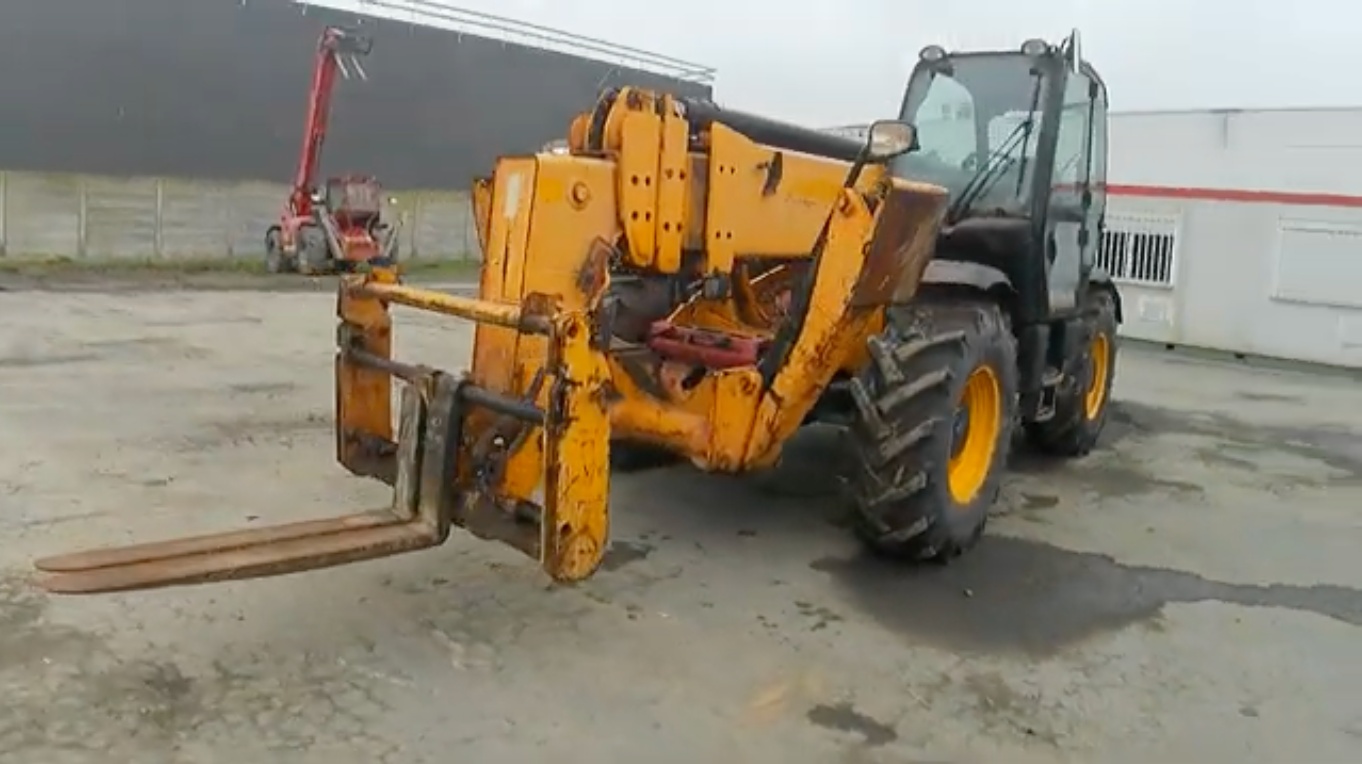

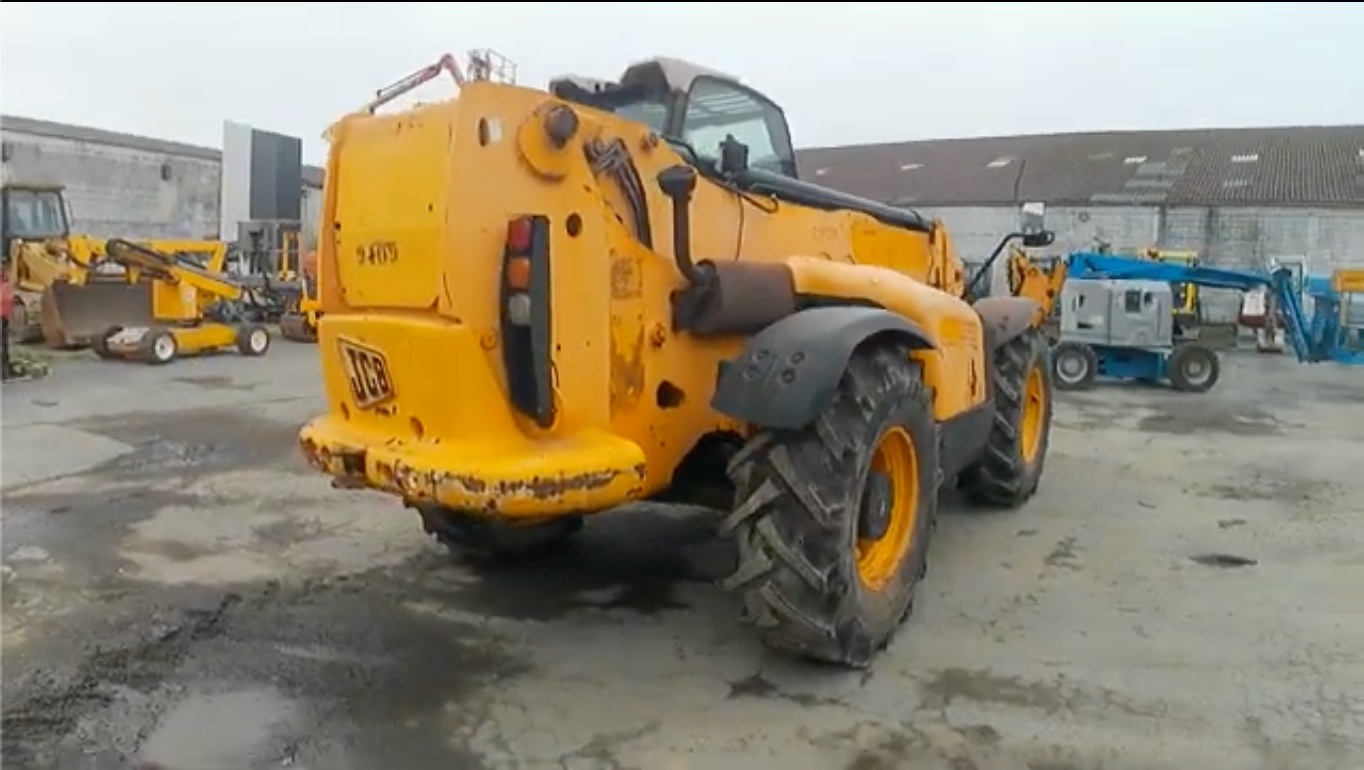

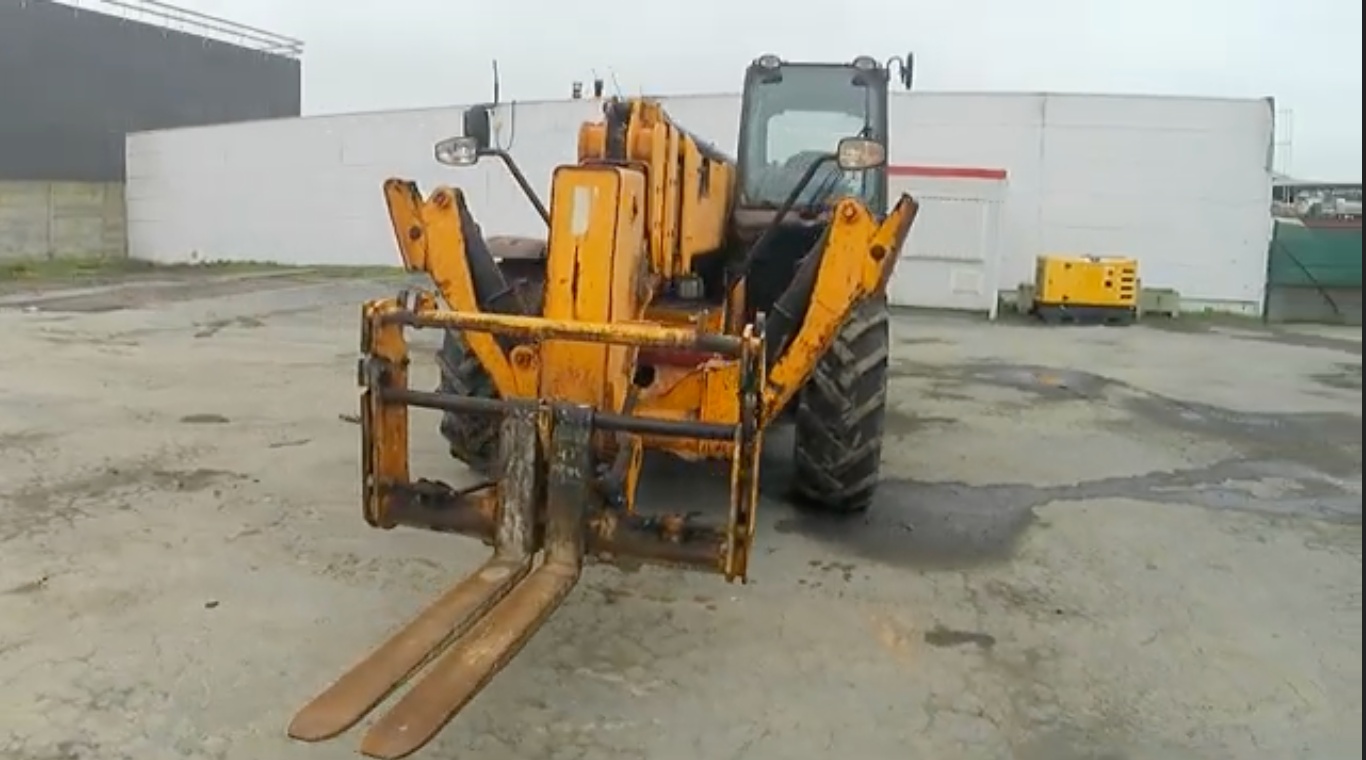

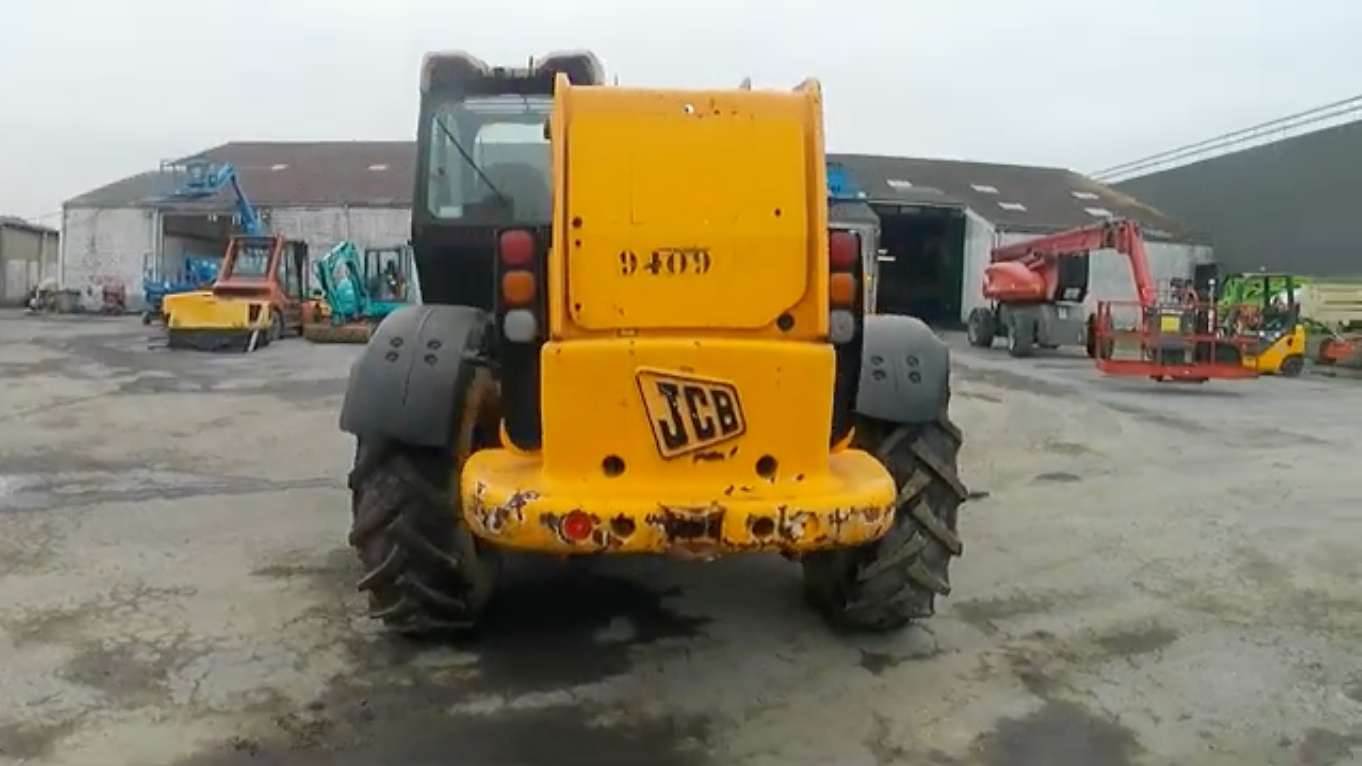

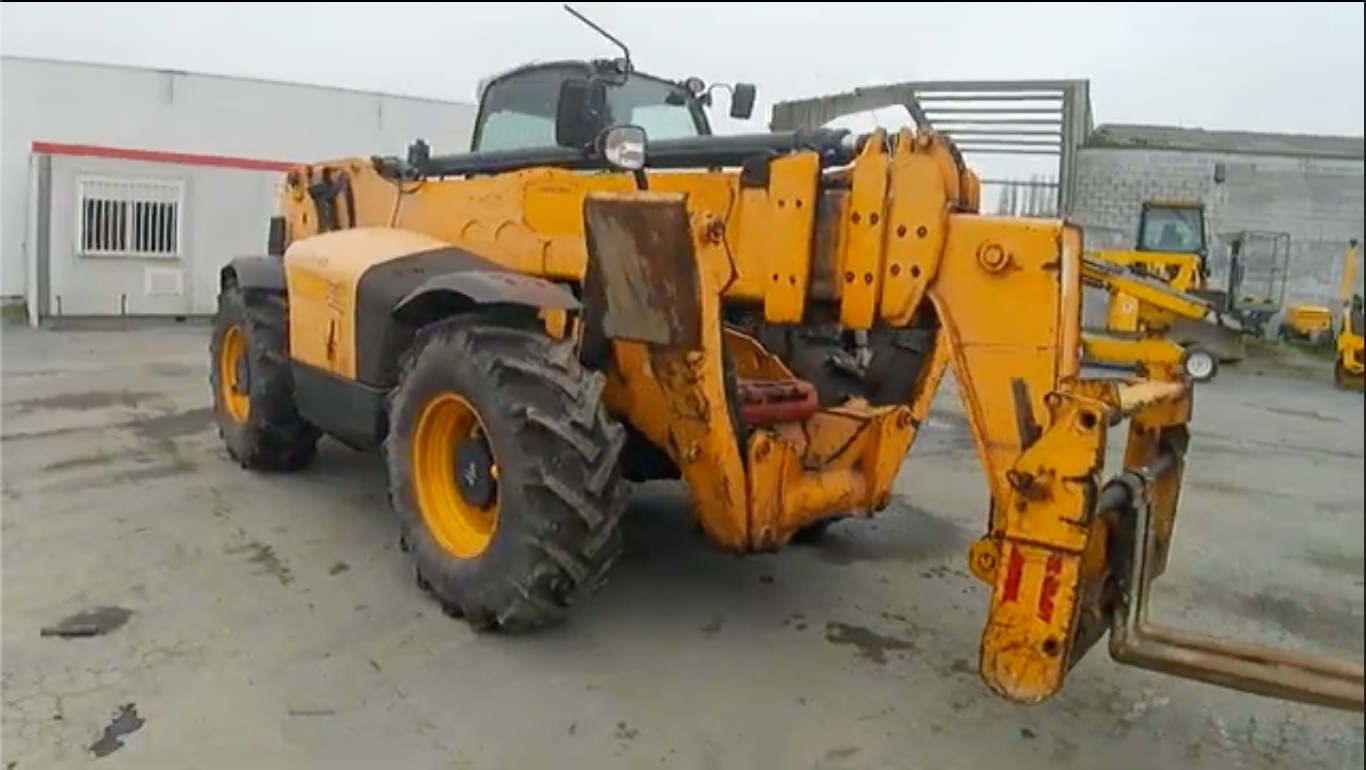

2009 JCB 540-170 17.5M BOOM LOADER

2009 JCB 540-170 Telehandler Specs

📏 Dimensions:

Max Lift Height: 57.4 ft

Max Forward Reach: approx. 41 ft

Overall Height: 8 ft 10 in

Overall Width: 8 ft

Overall Length to Front Carriage: 20 ft 7 in

Ground Clearance: 15.7 in

Wheelbase: 9 ft

Lifting Performance:

Max Lift Capacity: 8,818 lbs

Lift Capacity at Full Height: ~5,512 lbs

Lift Capacity at Max Reach: ~1,102 lbs

⚙️ Engine:

Engine Model: JCB Dieselmax

Power Output: 100 hp

Fuel Type: Diesel

Displacement: 4.4 liters

Transmission:

Type: Powershift

Gears: 4 forward / 4 reverse

Hydraulics:

Pump Type: Gear pump

Flow Rate: Approx. 110 L/min

Pressure: Up to 250 bar

Other Features:

Side-mounted engine for easy maintenance

Frame leveling

Auxiliary hydraulic lines for attachments

ROPS/FOPS compliant cab

Operating Weight: 25,132 lbs
